Overview
A APCU3 unit is a compact PC USB3 Vision processing system. Its 1.33 up to 1.9 GHz Intel Atom 4th generation processor offers high computing performance, full compatibility to x86 operating systems such as Windows and Linux. This processor is a E38xx Atom CPU of Intel’s embedded line which ensures long term availability and lowest power consumption. The unit is equipped with 2GB on board DDR3L RAM and an CFast (SATA) solid state drive. A monitor can be connected using the Dual-Mode DisplayPort interface. Gigabit Ethernet interface is for network connectivity. Back USB3.0 connection can be used to connect mouse, keyboard and other peripherals. Front USB3.0 are used to connect USB3 Vision cameras. The unit has an integrated RS232 interface and optocoupled input/outputs on the board. Simple, robust, cost effective design without unnecessary features.
Housing : Hard anodized aluminum
Dimensions : 54.4 x 40.0 x 99.0 mm (W x H x L)
Power : 12 – 24V DC, consumption < 7W, without USB consumption
Compliance : CE, FCC, RoHS, GigE Vision, GenICam
Operating systems :
- Windows Embedded Standard 7
- Windows Embedded Standard 8.1
- Windows 10 IoT Industry
- Fedora Linux
Number of ports : 2x USB3 ports, located on the front panel
Host controller : Renesas uPD720202
Max. power per port : 5W, 1A @ 5V
CPU option 1 : Intel Atom E3825 – 2 cores, 1.33GHz, 22nm process tech
CPU option 2 : Intel Atom E3845 – 4 cores, 1.9GHz, 22nm process tech
RAM : DDR3L, 2GB, 64bit, 1066MT/s or 1333MT/s (E3845)
Processing blocks : ISP - Image Signal Processor , CPU x64 Intel CPU 2 or 4 cores , GPU Graphics engine 4x Gen 7 (Encode H.264, MPEG2)
Display output : Dual-Mode DisplayPort, DP 1.1a, 2560 x 1600 x 24bpp @ 60Hz
Storage : CFast SSD card, 16 to 32GB, optional more, SATA 3.0Gb/s interface
DisplayPort : 1x Dual-mode DisplayPort, HDMI compatible, lockable
Ethernet : 1x 1000Base-T, RJ45 with screw locks
USB : 3x USB 3.0, Standard A with screw locks
Digital inputs : 2x Inputs, Opto-coupled
Digital outputs : 4x Outputs, Opto-coupled
Serial : 1x RS232, (Tx, Rx only)

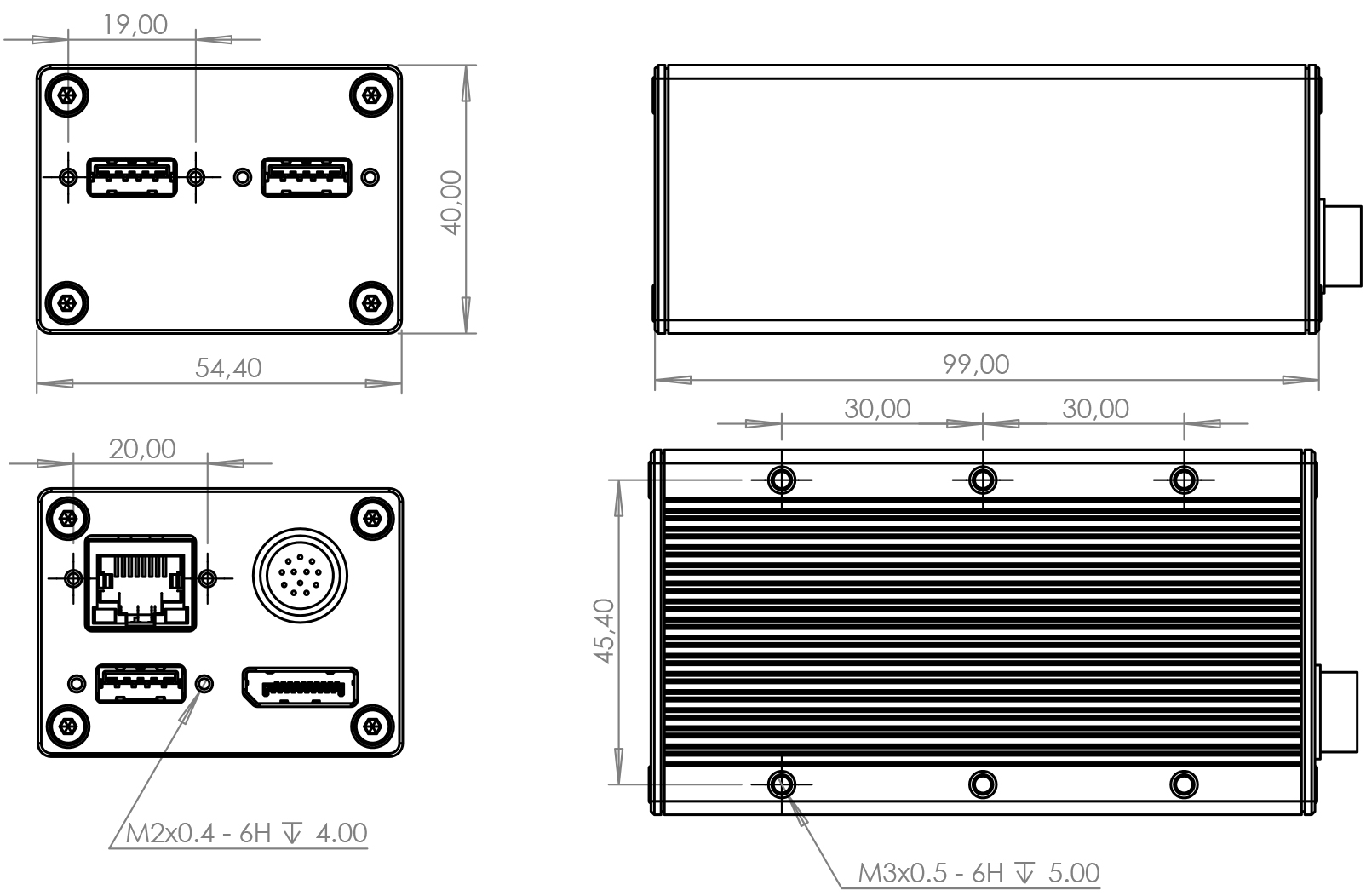

APCU3 size
- Intel x86 compatible 22nm CPU
- USB3 Vision host controller
- CFast SSD Disk
- Low power consumption
- Very competitive price and performance
- Small dimensions
- Anodized aluminum housing
- Lockable I/O connectors
- Industrial automation
- Electronics & semiconductors
- Robot guidance
- Microscopy & medical imaging
- Machine tooling & measurement
- License plate recognition & border control
- Security & law enforcement
- Transportation & logistics
- Food, beverage, package inspection
- Quality control
- High end CCTV
